4U7343

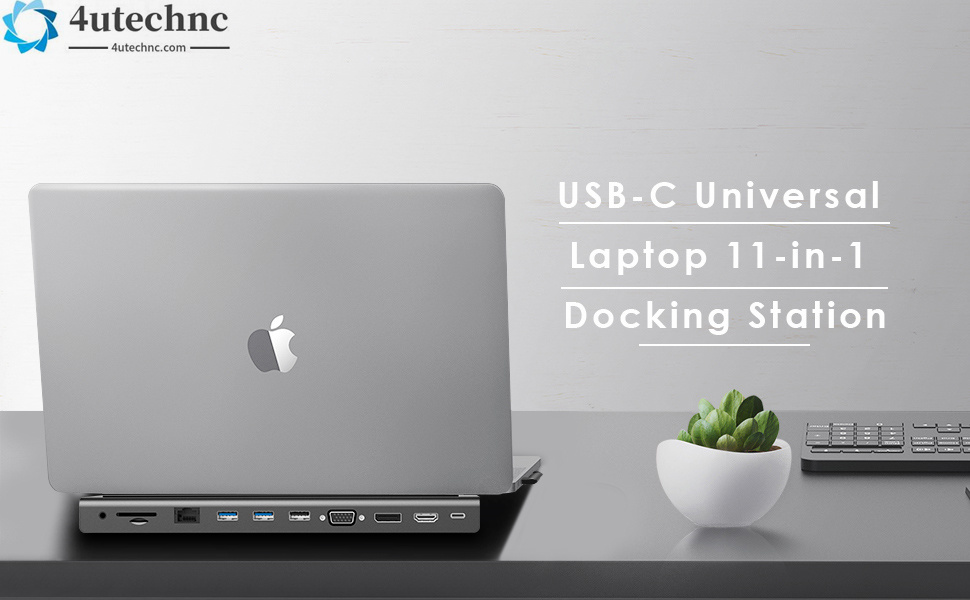

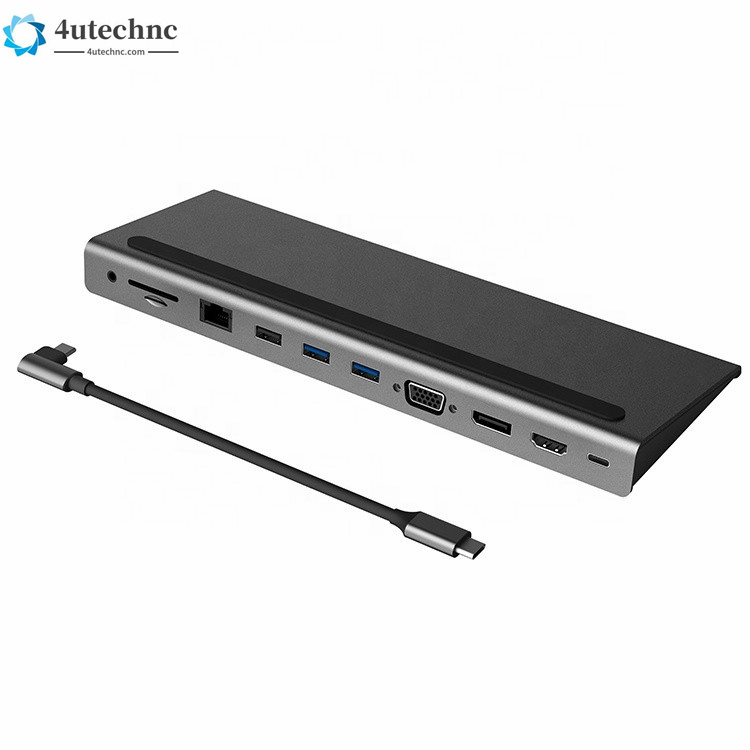

                      USB-C- 11 in one Full Function Docking Station for Laptop

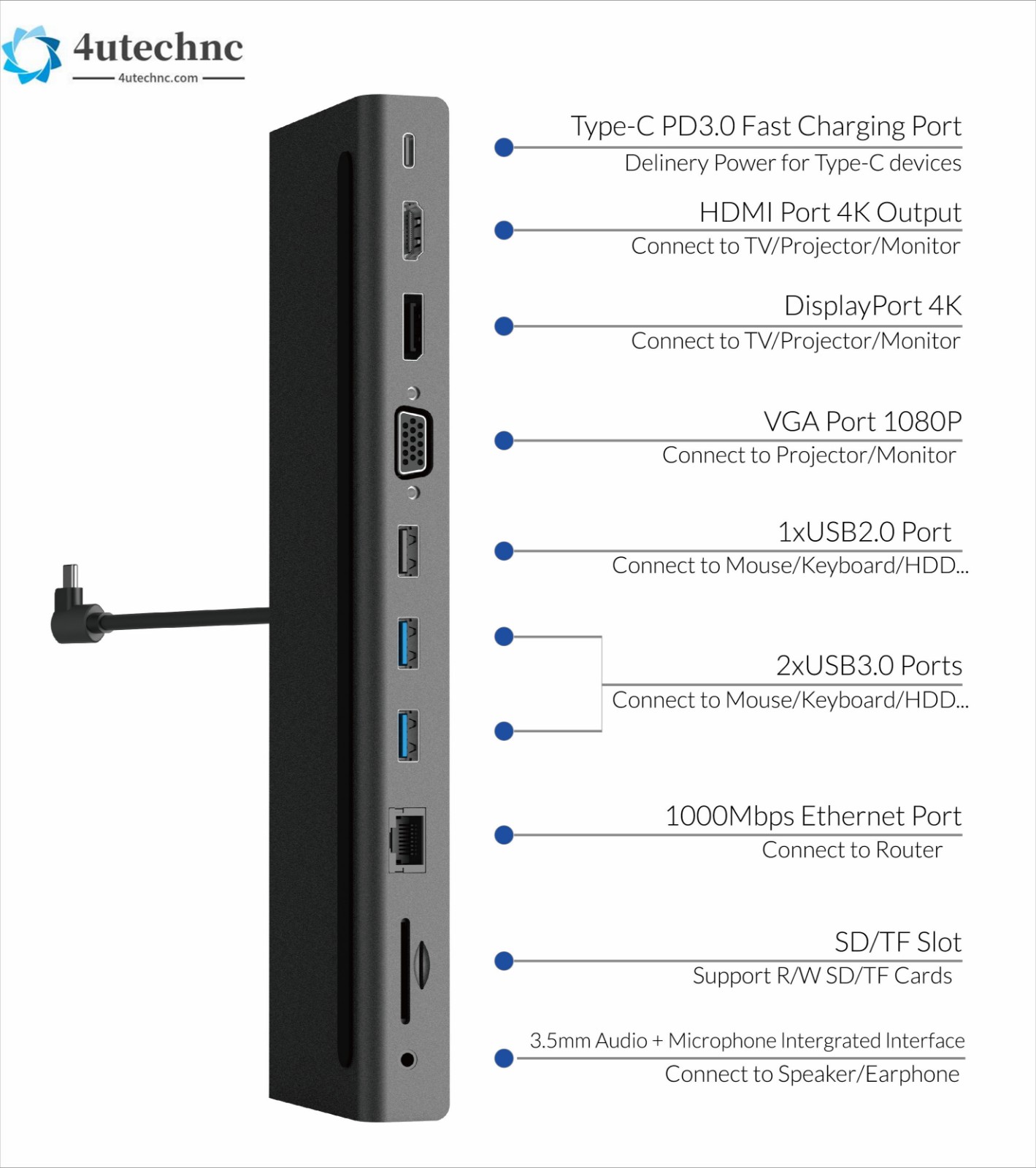

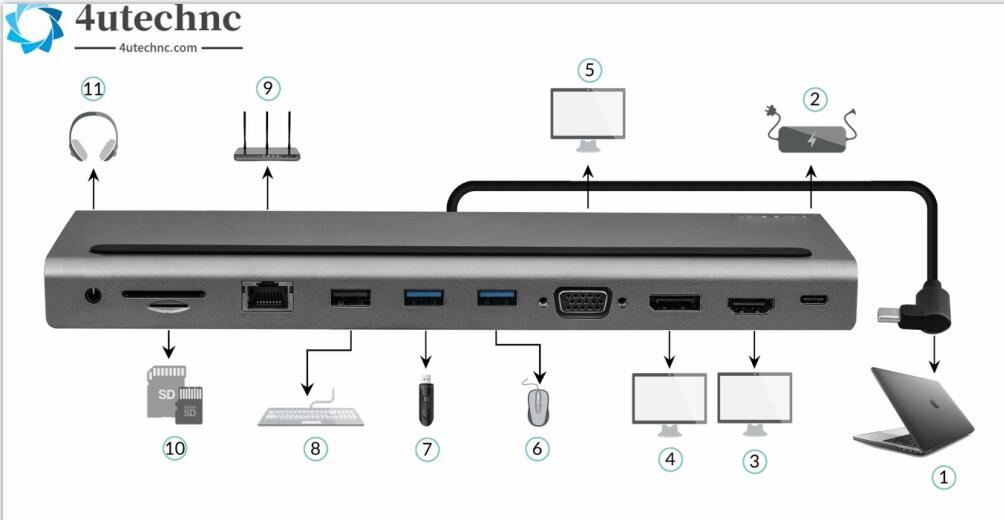

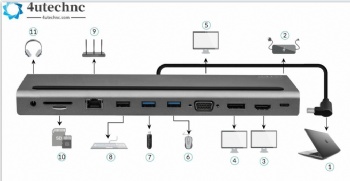

Features:

USB-C- Full Function Docking Station for Laptop
1. Single HDMI output max resolution up to 4K 30Hz
2. Single DisplayPort output max resolution up to 4K 30Hz.
3. Single VGA output max resolution up to 1920x1080P/60Hz.
4. Dual video output (DP+HDMI, HDMI+VGA, DP+VGA) max resolution up to 1920x1080P/60Hz with Multi-Stream
 Transport ( MST) technology.
5. Three video output (DP+HDMI+VGA) max resolution up to 720P/60Hz with Multi-Stream Transport (MST) .
6. USB3.0 A/F *2 support max data transmission up to 5Gbps ,and support BC1.2 quick charge with max power at 5V 1.5A.
7. USB2.0 A /F support max data transmission up to 480Mbps.
8. SD/ Micro SD slot compliant with SD3.0 ,data transmission speed up to 100Mbps.
9. Support 3.5mm audio output.
10. Support Ethernet Gigabit speed to 10/100/1000Mbps, no extra driver need.

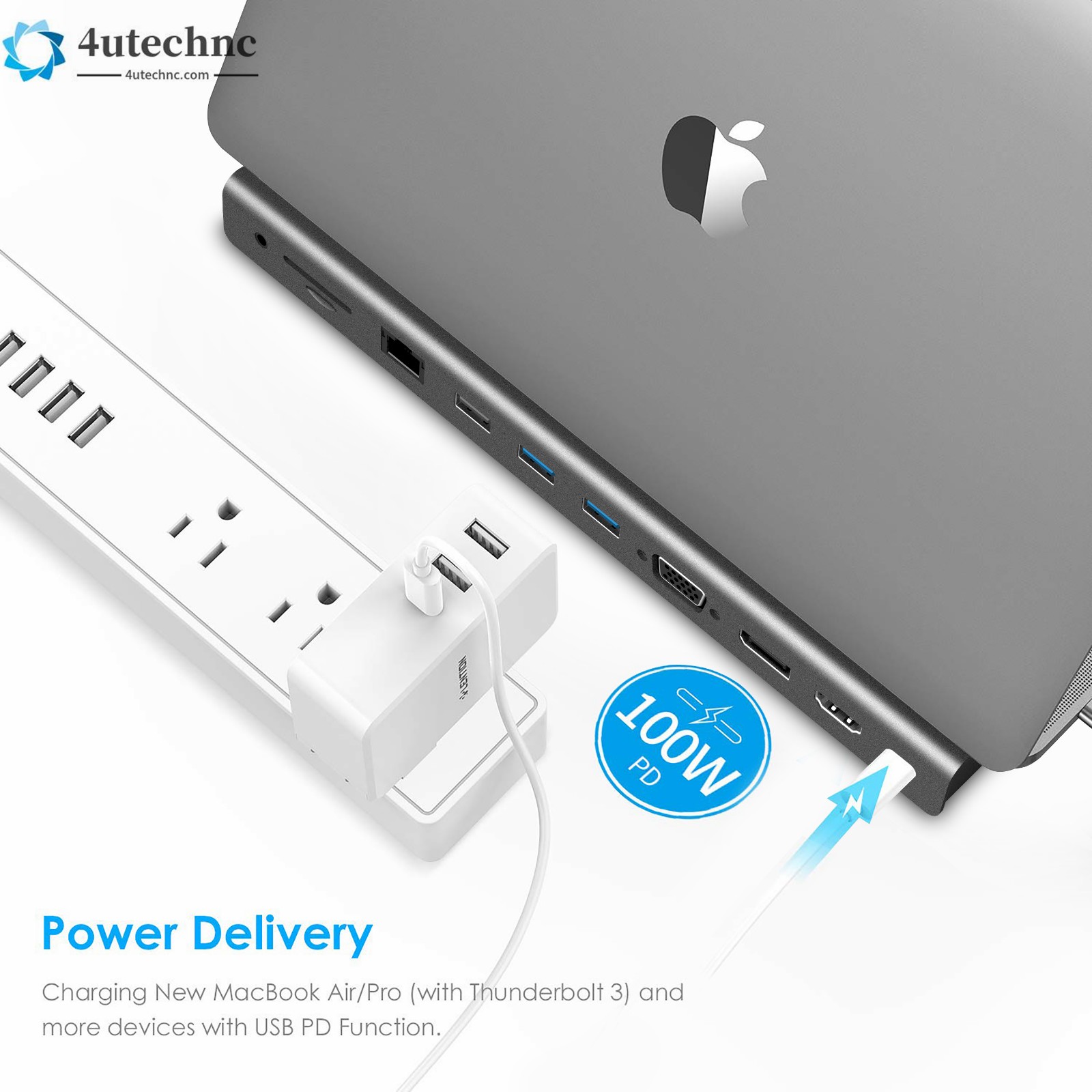

11. USB-C Female  PD power delivery at 100W (20V 5A.)


Specifications:
Input : USB-C

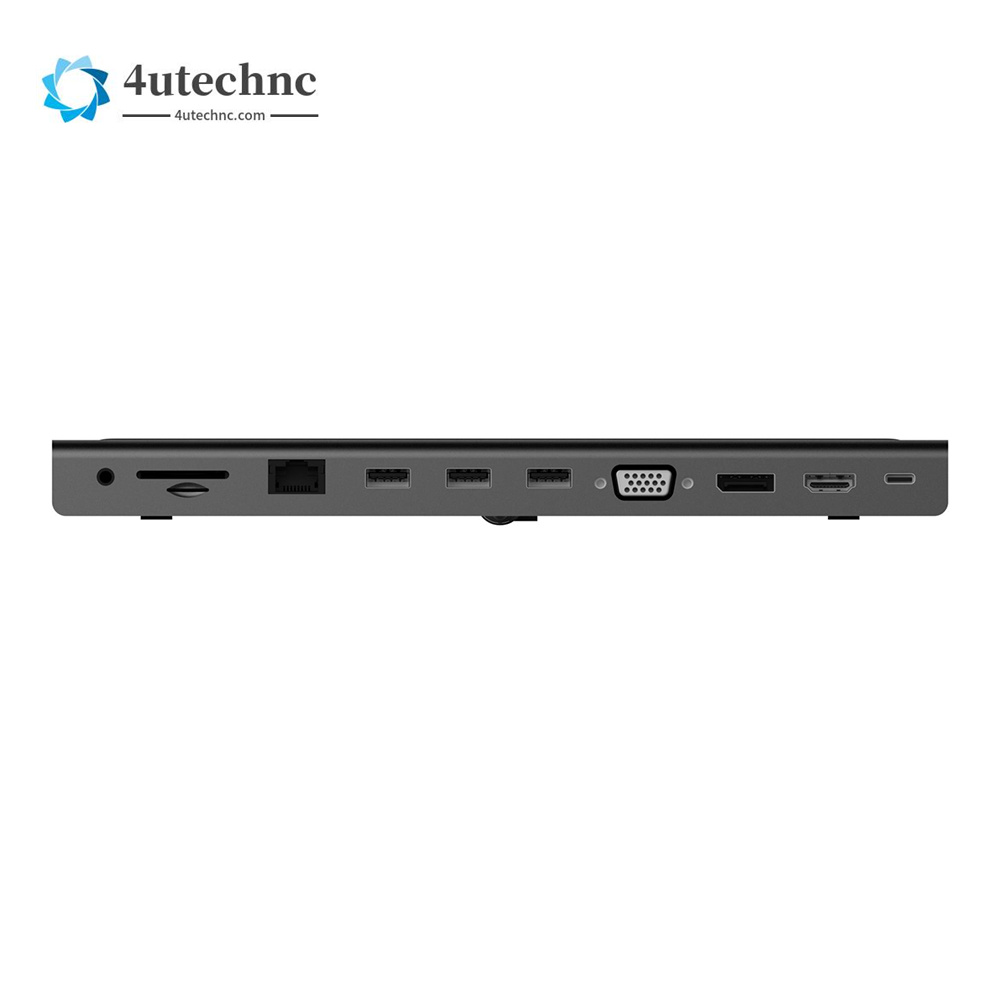

Output :
1x DisplayPort, 1xHDMI, 1x VGA
2x USB3.0 A F,  1xUSB2.0 A F
1x Ethernet Gigabit RJ45
1x SD slot
1x Micro SD Slot
1x USB-C Female
1x 3.5mm audio
Model:4U7343

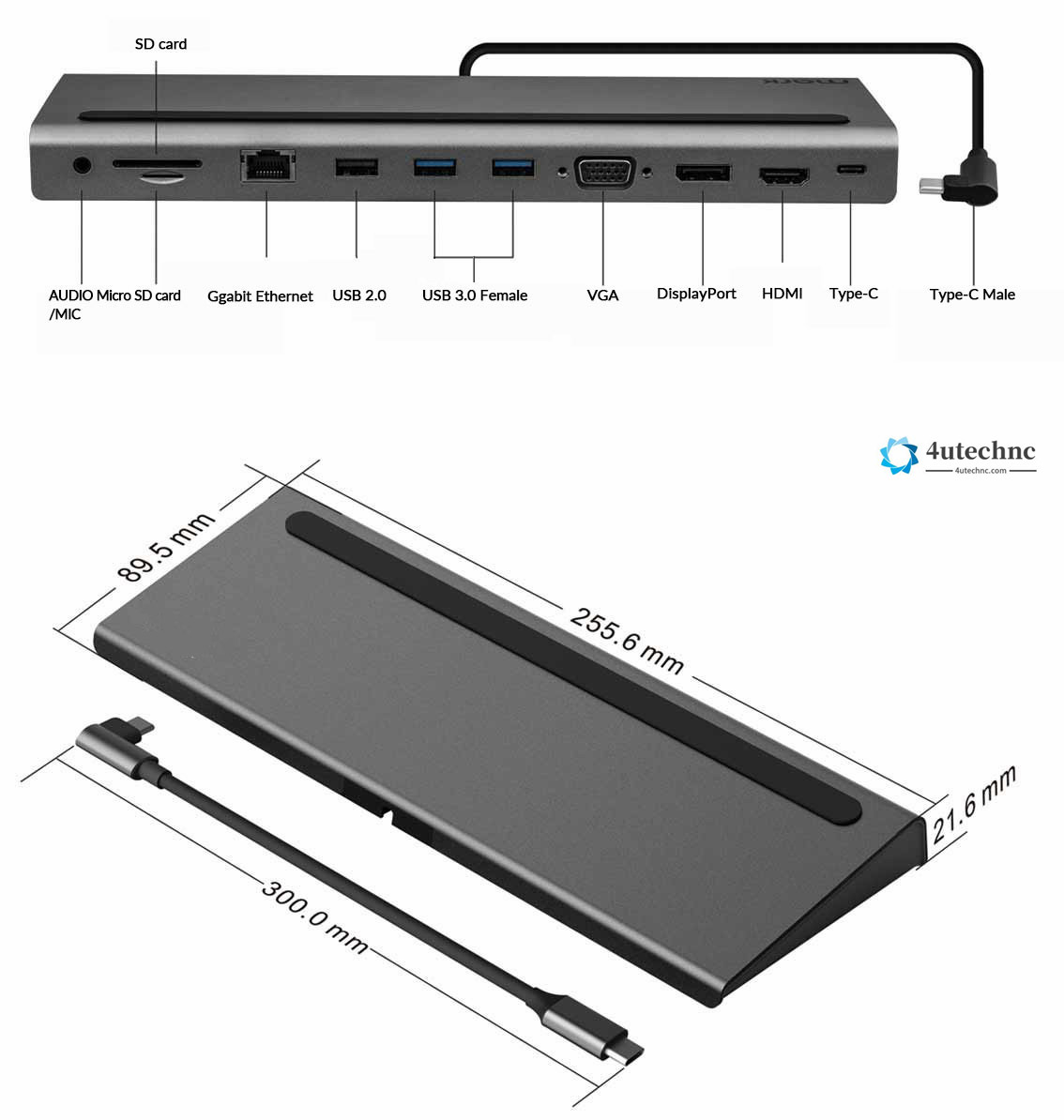

Dimension: 255.6 x 89.5 x 21.6mm
If you are looking for expanded PC and Mobile peripherals,including,USB C Hub,USB C Converter,USB C
Multiport Hub,USB 3.0 Hub,Usb 2.0 Hub,USB Ethernet,USB Extension,USB Converter etc.Welcome to talk
to us and also welcome to visit our factory.thank you.
