Universal Multi-Function Car Buzzer Parking Sensors CB01-4T3

Universal Multi-Function Car Buzzer Parking Sensors CB01-4T3

Less is more.
Spend less money,enjoy more safety life.
Specifications

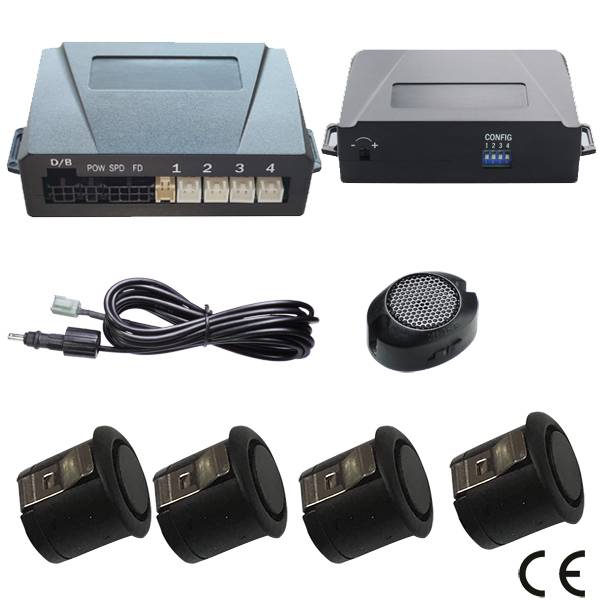

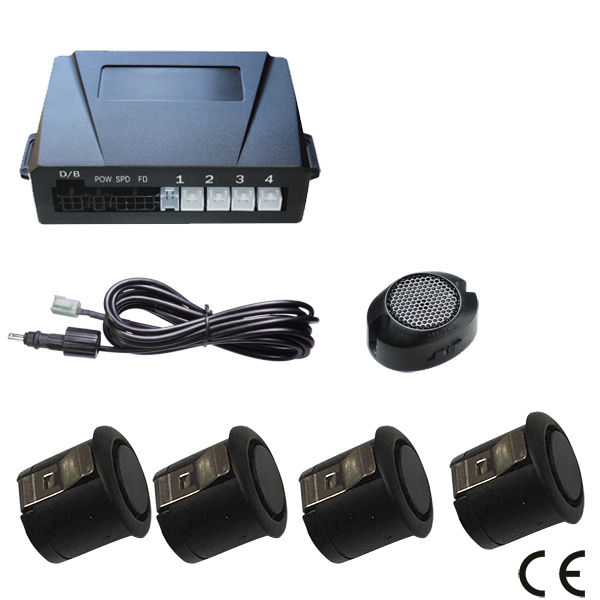

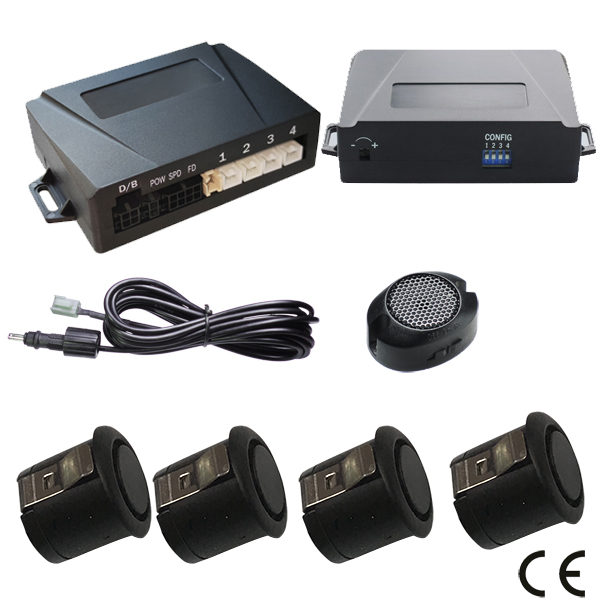

1) Car Front & Rear 4 Parking Sensor System , fit for all passenger cars;
2) Model number: CB01-4T3.
3) Sensor diameter:18.5mm.
4) Sensor cable:2.5m with IP67 waterproof connector.
5) Sensor detection:0-2.5m.
6) Display range:0-2.5m.
7) Built-in buzzer range:30cm-1.5m.
Facotry price !
EMAIL INQUIRY

Universal Multi-Function Car Buzzer Front and Rear Parking Sensors CB01-4T3
Front and Rear Car Parking Sensors.
Distance data can be output by feet or meter.
CB01-4T3 car parking sensors can be installed either on front bumper or on rear bumper.

Technique Parameter

Function	Front and Rear Sensor System free change Speed control and brake control free change Rear side sensor detection limitation free choice Spare tire and tow bar for free
Switch option	additional switch to turn on/off the whole parking sensor kit
Power voltage	8.5V~27V DC
Operating current	60mA~150mA
Frequency of sensor	40KHz
Operating temperature	-30°~80°
Detection range	2.4M (to large flat objects or wall)
Optimum detection range	1M(adult)
Response time	0.15 sec.
Buzzer volume	>85dB(internal),>95dB(external).
Sensor extension cable	2.5m, 3.5m and 5m for choice
Power cable	1.5m
Display cable	5m
Buzzer cable	2m

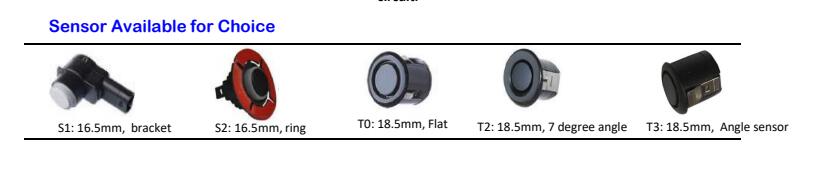

Remark: we have different sizes and type of sensors,kindly specify before ordering,thanks.

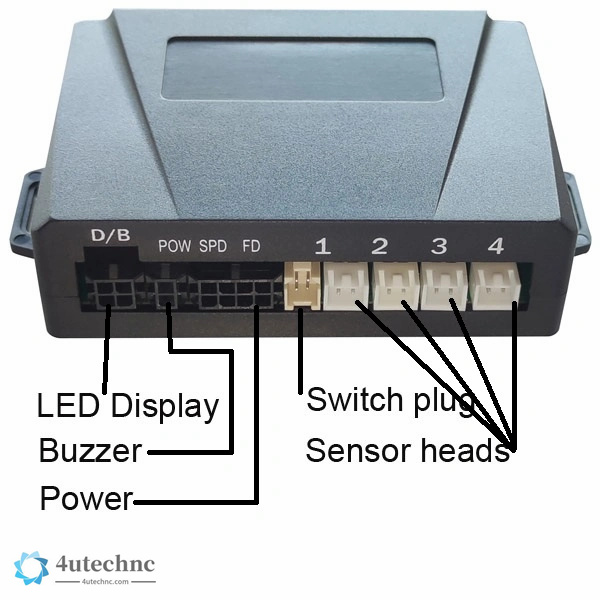

Addtional Switch to turn on/off the whole parking sensor. Built-in buzzer alarm option for chioce.
And there is no standalone buzzer in the kit for choice. Welcome to contact for more details.


Specifications
1) Car Front & Rear 4 Parking Sensor System , fit for all passenger cars.
2) Model number: CB01-4T0. (car packing sensor with buzzer, buzzer can also be replaced by display)

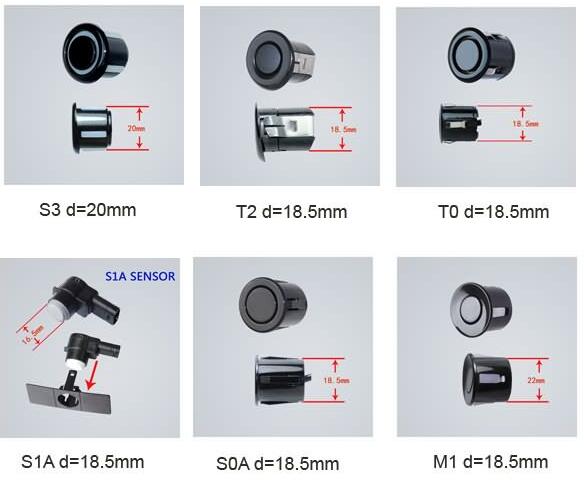

3) Sensor diameter:18.5mm.(there are different size sensors,pls confirm this before order)
4) Sensor cable:2.5m with IP67 waterproof connector.
5) Sensor detection:0-2.5m.
6) Display range:0-2.5m.
7) Built-in buzzer range:30cm-1.5m.

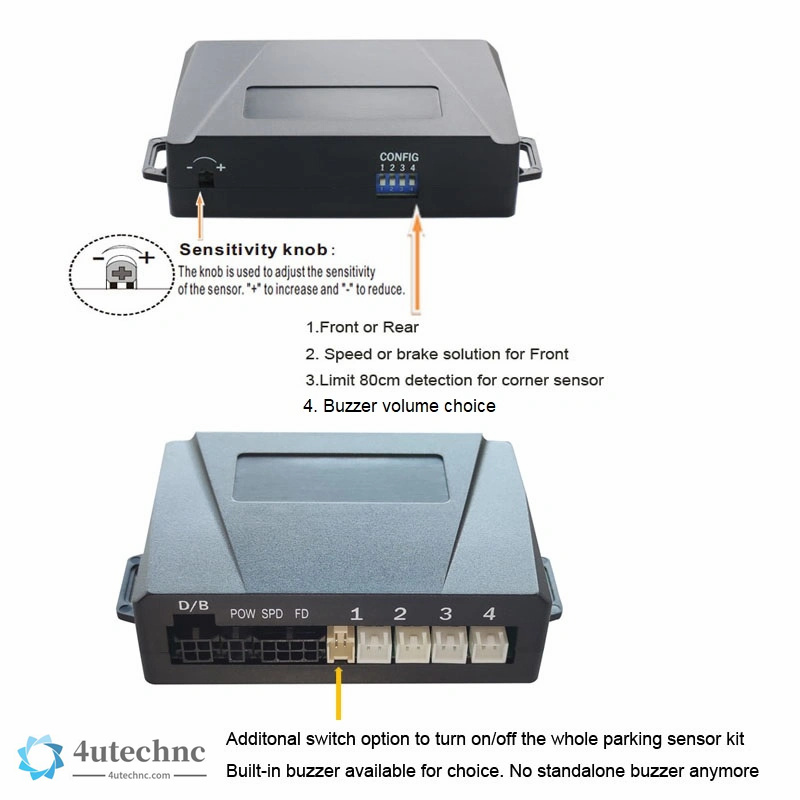

8) Sensor sensitivity is adjustable. You can adjust sensor sensitivity by yourself if it's too strong or too weak.

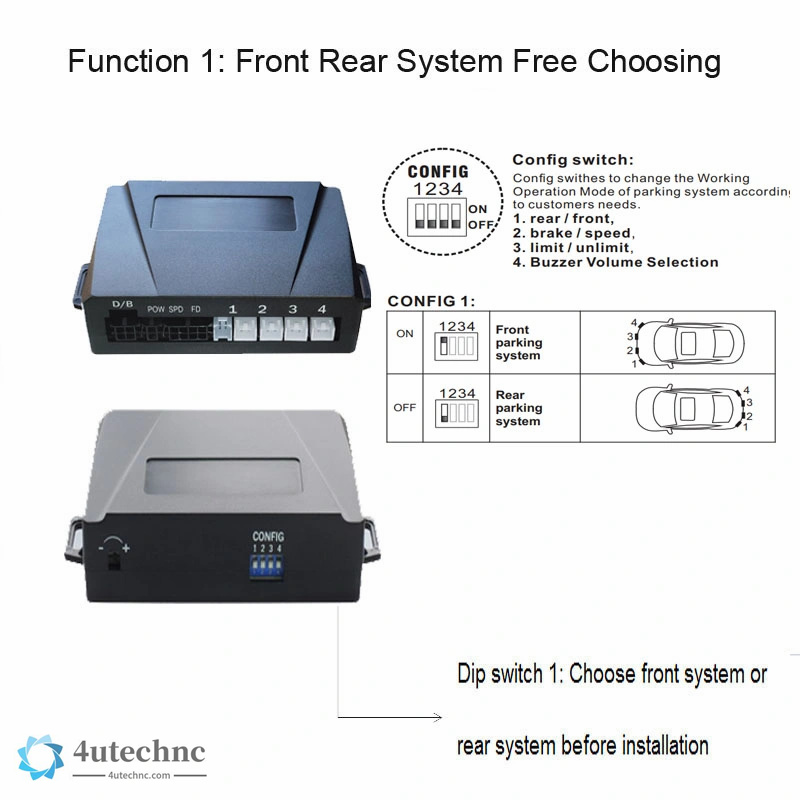

9) You can also choose the front parking sensor system to install at front or rear parking sensor system to install at rear bumper

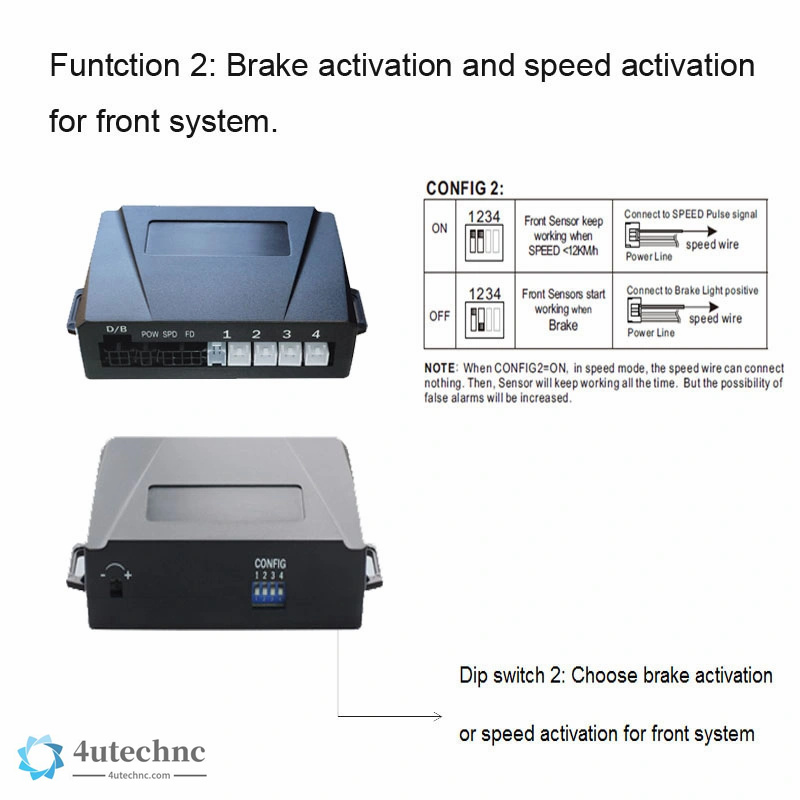

by your choice. There are brake activiation and speed activation availble. You can adjust CONFIG1 switch to choose front system
or off to as rear system. CONFIG 2 on to choose speed activation and off to choose brake activation for front system.

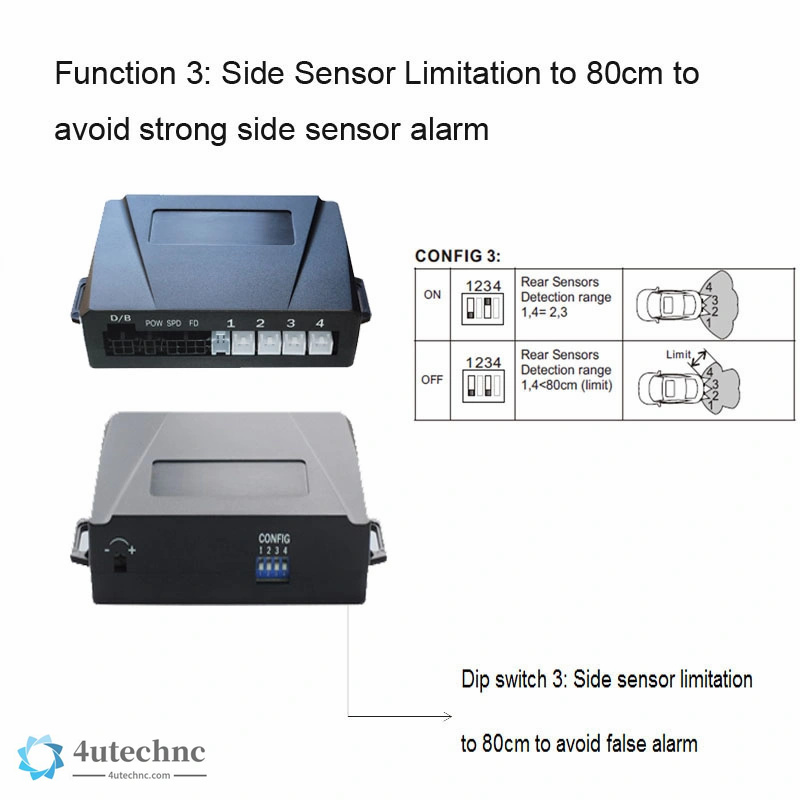

10) CONFIG3 OFF to make side sensor detection limited to 80cm to avoid side sensor strong detection.
System will not make bip alarm or show distance more than 80cm. It can avoid the annoying bip sound.

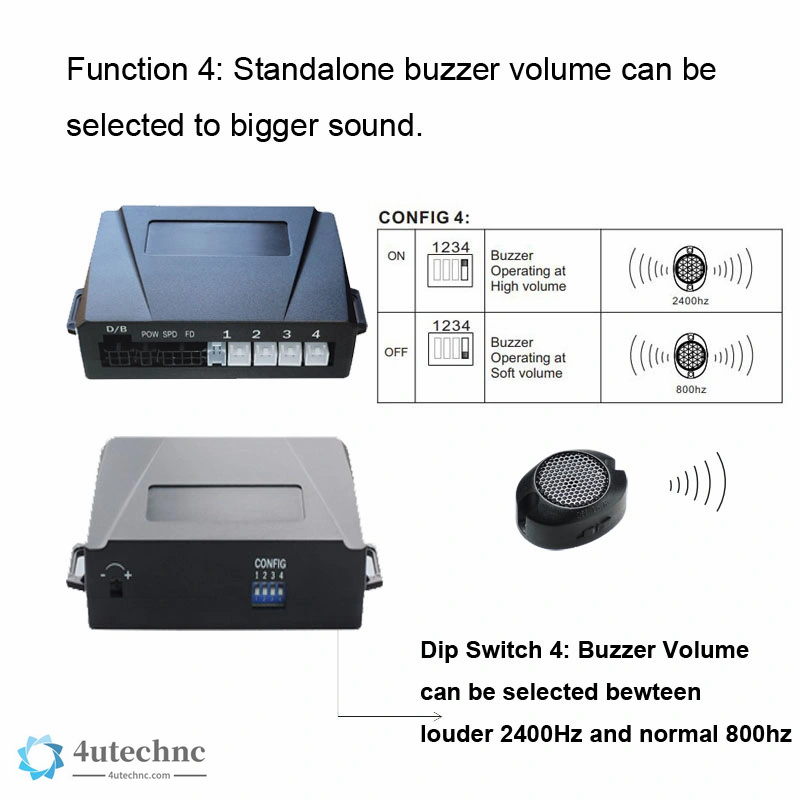

11) CONFIG4 to offer buzzer sound volume choice from 800Kz to 1200Kz. Then you can choose the better
buzzer sound you need for louder volume and normal volume.

12) Buzzer working distance is from 0-80cm for front system and 0-1.5m for rear system. And your LED display
will show to relative light color (red-yellow-green) accordingly.
13) Pls install the sensors not less than 45cm to avoid detecting ground. And turn a certain angle forside sensors.

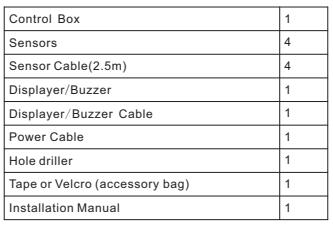

Packing list:

Package and Shipping:
Neutral Package:
QTY: 12.0 SETS .
N.W.:8.5 KGS .
G.W.: 9.5 KGS .
Volume:0.042 cubic meter.

Delivery date: 3-5 days after payment received. Sample: one day after payment received.
Payment: TT, paypal and western union.
Trade Term: Exw
MOQ: 100sets. Sample available.
